KWC 2025 AKRA Engine Package #4

Description:

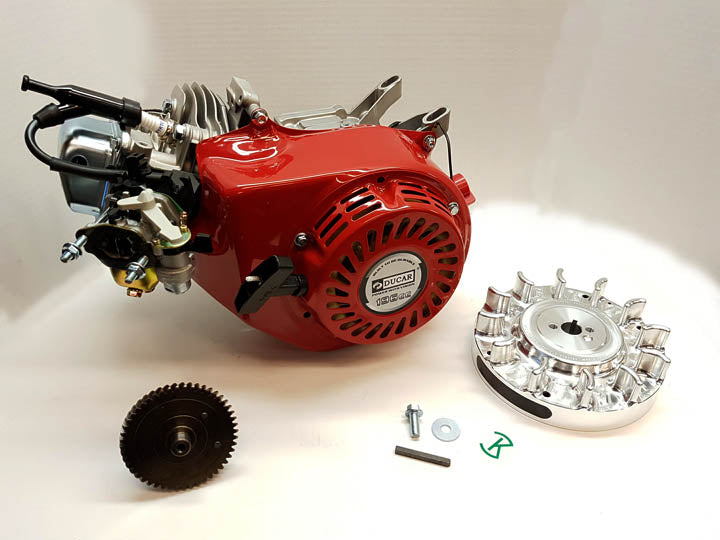

2025 AKRA Engine Package Includes:
and Ducar OHV 6.5hp Clone Engine

ARC Flywheel with 32 Degrees of Advanced timing.

Genuine Ducar engines come with quality, consistency, and have the best performance.  The 196CC Ducar Engine is made with Kart Racing Competition in mind.

SFI certified billet aluminum flywheel for Honda GX160, GX200, & 196cc Clone.
The keyway is fixed and the stock pull starter can be used.
Weighs 3.4lbs and incorporates a special low drag fan design unique to ARC flywheels.
A specially designed high-power rare earth(neodymium) magnet and carrier design creates the hottest spark possible.
Now featuring 8 degrees timing advance built into the keyway. 32 degrees BTDC.
Set coil gap to minimum .030"

DynoCams Racing Camshaft
Choice of Camshafts

CL1 - Used for plate classes Red Plate Click for CL1 Info
CL2 - Used for plate classes Red - Green Plate Click for CL2 Info
CL2-R2 Used for Purple Plate - Blue Plate Click for CL2-R2 Info
CL3 Used for Blue Plate and Adult Racing Classes Click for CL3 Info
CL4 Used for Adult Racing Classes New 2025 Click for CL4 Info

You build yourself kits require an engine accessories kit as well.  These kits are included with complete engines built by Kart Works. The accessory kit includes:

Adult Non-Restricted Engine Kit

1 x BSP-SBK102B Air Adaptor

1 x CL-1245-98K 98-Drilled Jet

1 x KW-C002 Exhaust Cover

1 x 12251-ZL0-003 .010" Honda Head Gasket

1 x KW-KEY Ignition Timing key

1 x SF-124 90 degree pulse fitting

1 x T 0869 fuel line reducer

1 x T 1550 3/16" fuel line Tygon

2 x T 1554 1/4" fuel line Tygon

1 x RLV-4440 fuel filter

1 x KW-E014 fuel pump riser with bolts

1 x DC PC-1 Walbro Fuel Pump

1 x NGK-BPR6EIX NGK Spark Plug

1 x  DC-JC-CVK 90 Degree breather fitting

1 x GM-CC Exhaust cover

1 x TA KMTCR - Throttle linkage clevis

1 x DC-CL-TP Cut Out Top Plate Clone - Copy

6 x PA-8420390 Tie Wraps

6 x SF-068 Lock Washers
1 x Magnetic Drain Plug

For Restricted engines, the Plate and other needed parts are included.

Parts needed to make the engine complete if needed.

Header kit, Chain guard, and Clutch.
