Kart Works Canada Inc. SKU: KW-DUCAR-212-S2KITDK

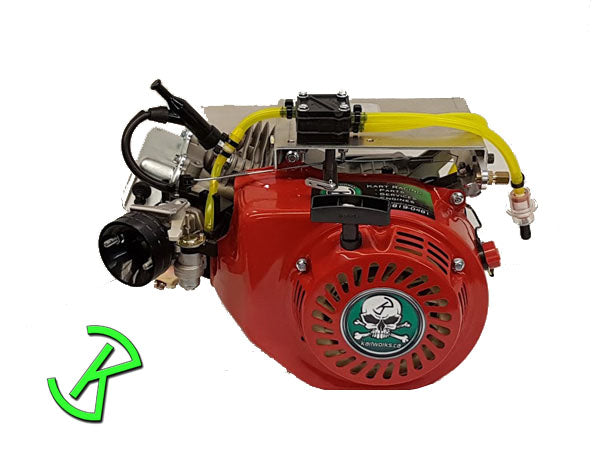

Engine, Ducar 212 Stage 2 with Top Plate
Some items may take a few extra days to ship out.
Couldn't load pickup availability
This engine is specially prepped for racing,
On our Dyno;
Peek Corrected Torque = 12.5"lbs @ 4025 RPM
Peek Corrected Horse Power = 13.5HP @ 6250 RPM
Designed for 7000 RPM MAX!
FEATURES
- PVL Aluminum Flywheel 17,000 RPM Rated
- Pulse fitting for fuel pump or plug if not required included
- Cast Iron Cylinder Sleeve
- Governor Removed
- Dual Ball Bearing Block
- Ducar Hemi Head
- Ruixing Carb Blue Printed.650” venturi
- Carb Re-Jetted w/ Honda OEM Jet
- Electronic Ignition
- NGK Spark Plug
- Chrome Faced 1mm (Thin) Top Ring
- Increased Compression
- Hardened Dished Valves
- Valve retainers and keepers
- 26lb Valve Springs
- 275 - 7000RPM Modified Cam
- Advanced Timing from OEM
- HD rockers with EZ lash adjustment
- KWC Custom Seal, Crank case and Head
- EZ Pull-Start Design
- 87 - 94 Pump Gas
- Top Plate Throttle Linkage
- Fuel pump
- Tygon Lines w/ fuel line reducer
- Fuel filter
SPECS
Engine: Ducar 212
Brand: Ducar
Engine Type: Single cylinder, 4-stroke, air cooling, OHV
Displacement: 212cc
Bore: 70mm
Stroke: 54.94mm
Valve Size IN/EX: 27mm/24mm
NOTE:
All GX200 and Clone 200 Headers will fit on the Predator 212cc HEMI Head
Recommended Header - RLV-5435K-1
Recommended Muffler - RLV-4106
Clamp also needed 5/16" - RLV-4144
Unless Stated, Engines do not come with Tank or Muffler/Exhaust
MOTORS SOLD FOR ORGANIZED COMPETITION PURPOSES OR EXPORT ONLY . (NOT FOR USE ON ANY EQUIPMENT, OFF ROAD, RECREATIONAL, OR EMISSIONS CONTROLLED APPLICATIONS. DOING SO IS A VIOLATION OF FEDERAL LAW)
