Dyno-Cams SKU: DC-C-F275-CL

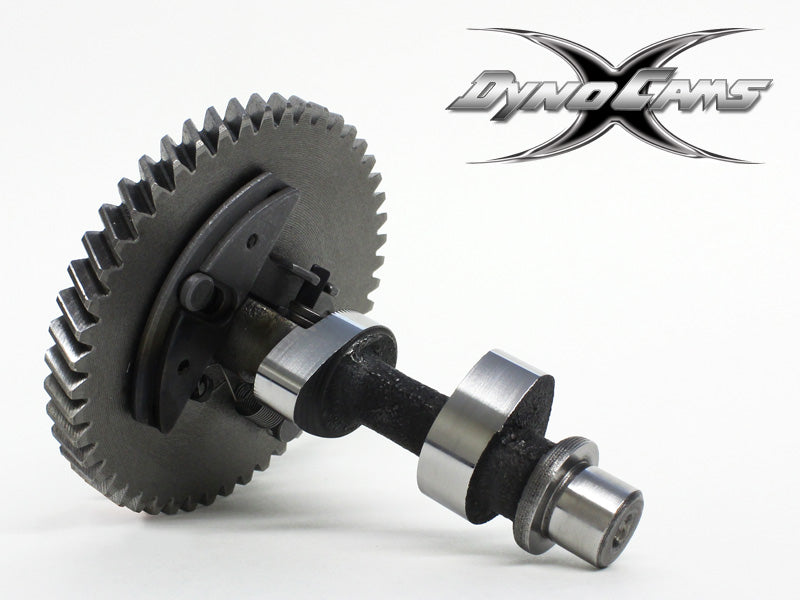

Camshaft, GX200-160 Clone Dyno Cams F275 Welded Camshaft
Regular price
$175.82 CAD
Regular price
Sale price
$175.82 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description:
Description
- This cam has very aggressive ramps and requires an upgraded spring package, billet rod, and flywheel. Use bored stock or Tillotson carb. Great cam if you have a lift check requirement but want maximum open valve duration.
- The Lobes on this Cam are Welded for extra durability.
Specs
| Engine: | 196cc OHV Clone, 212cc Hemi Predator |
|---|---|
| Recommended Class: | Modified |
| Target (MAX) RPM: | 8200-8400 |
| Spring Pressure (In / Ex): | 32 lbs |
| Valve Lash (In/Ex): | .003" |
| Ignition Timining: | 32 Deg BTDC |
Profile
| Intake | Exhaust | |
|---|---|---|
| Open: | 54.6 BTDC | 92.3 BBDC |
| Close: | 90.0 ABDC | 53.2 ATDC |
| Lift: | .278" | .278" |
| C/L: | 108.0 ATDC | 110.0 BTDC |
| DUR @ 50: | 258.7 Deg | 258.6 Deg |
Click here for Cam Profile Sheet
THIS CAM IS FLAME HARDENED HEAT TREATED
