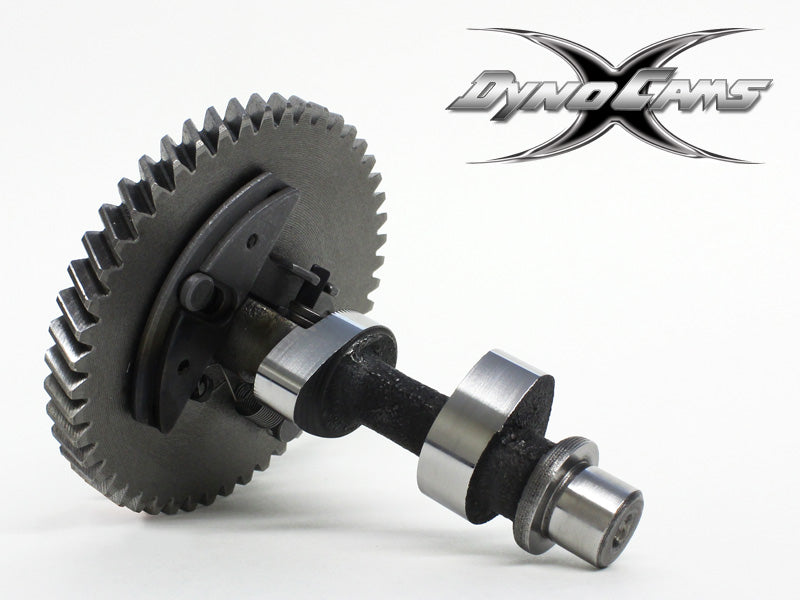

Camshaft, CL3 Low Duration Racing Cam

Description:

The CL3 utilizes the -5 duration check, in the AKRA rule package, by allowing a softer ramp rate on the nose of the cam. This design has shown gains in the 6200+ RPM range with minimal loss in peak horsepower.

The DynoCams CL3 is legal for the current profile rules for stock classes.

Engine: 196cc OHV Clone
Recommended Class: Unrestricted Stock Classes
Target (MAX) RPM: 6400-6900
Spring Pressure (In / Ex): 10.8 lbs
Valve Lash (IN/EX): .003"
Ignition Timining: 32 Deg BTDC

INTAKE
OPEN: 29.15 BTDC
CLOSE: 75.58 ABDC
LIFT: .2245
C/L: 114.0 ATDC

EXHAUST
OPEN: 65.95 BBDC
CLOSE: 41.55 ATDC
LIFT: .231
C/L: 103.5 BTDC

Click here for Cam Profile Sheet

THIS CAM IS FLAME HARDENED HEAT TREATED

Processed and ground by the hard working employees of DynoCams in the USA.
